Catch basins, temporary storage, retention basins
Extinguishing water, waste water, contaminated liquids
The scaffold container is ideally suited as an interim storage facility for e.g. water, fire-fighting water or as a collection basin for larger quantities of contaminated liquids, such as from oil spill incidents.

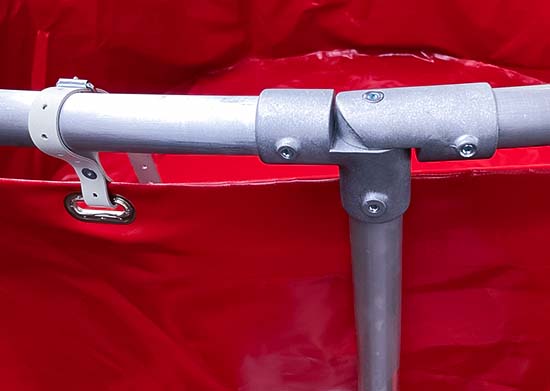

The base is the support frame made of sturdy aluminium tubes. The hanging bin is made of hard-wearing polyester fabric and is suitably framed inside. Suspension is by adjustable loops or a firmly welded tunnel hem. Depending on the size of the installation pool, additional fixings for stabilisation are recommended. The safe and stable design also allows for larger storage volumes and can thus be individually adapted to the respective requirements.
Als Standard verwenden wir 900 g/m² starkes, beidseitig vinylbeschichtetes Polyester mit Panama-Bindung. This material is resistant to most common industrial chemicals and is flame retardant (B1). The seams are double and high frequency welded. We offer other materials for special resistance requirements. We are also happy to adapt the size, design, colour or grammage to your requirements and wishes.
We offer various drains and valves for draining or collecting the damaged liquids, as well as corresponding pump systems and separators for proper treatment.
- Quick assembly
- Easy to clean
- Sturdy construction
- Size + material + colour freely selectable

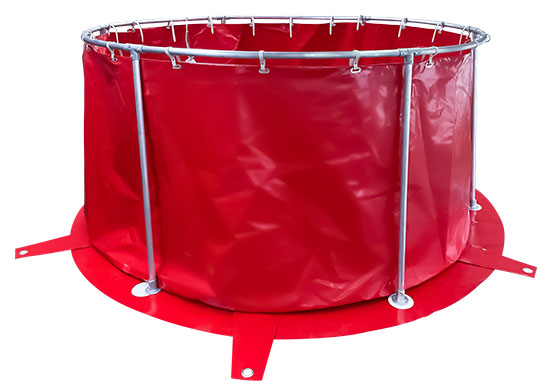

Mobile scaffolding container
|HEIGHT||up to 1500 mm|
|SUPPORT FRAME||Aluminium (other materials on request)|
|RESISTANCE||Against most industrial chemicals (or on request)|
|MATERIAL||900g/m² polyester coated on both sides with vinyl (or on request)|
|Crack resistance according to din 53354||Chain 420 daN/ 5 cm
Weft 400 daN/ 5 cm
Also available as conductive version!
All our products can be fully customised to your requirements and wishes.
Material & colour choice
Depending on the required resistance and area of application, we have a large selection of different materials, thicknesses and colours!
Accessories & Extensions
Whether extensions, fixings, drains or underlay mats, we stock almost every accessory.
Available in various designs and sizes. Aluminium, stainless steel or brass.
As protection against damage from below. Available in different thicknesses and sizes.
Vario puzzle tile made of solid PVC, 1125 x 750 mm, thickness 12 mm, accessible by truck and forklift.
Consisting of 1 m² PVC tarpaulin, 10 PVC patches each Ø 80 mm and Ø 40 mm, 1 PVC adhesive Plastigum 77, 170 g, incl. Bag.
Available in many different designs and sizes.
Green-yellow, 2 or 3 m length, with ground clamp and eyelet.
